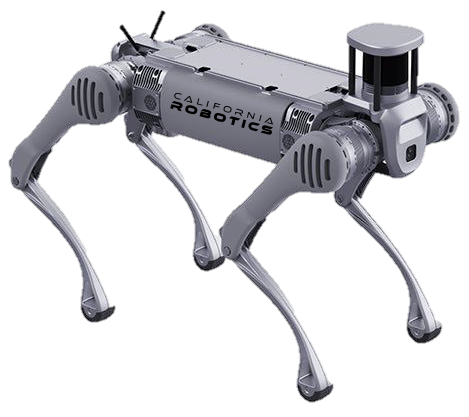

P.A.R.K.E.R. Robot
 P.A.R.K.E.R. Robot - Image 2

 P.A.R.K.E.R. Robot

SKU: CR  P.A.R.K.E.R. Category:

Description

The P.A.R.K.E.R. is a high-performance industrial quadruped robot designed for operations in complex environments and for applications such as inspection, logistics, and rescue.

  • Speed ​​exceeding 6 m/s and jumping heights exceeding 1.6 m. :content Reference[oaicite:0]{index=0}
  • Standing payload capacity of up to 120 kg and moving payload >40 kg. :content Reference[oaicite:1]{index=1}
  • Up to 4-6 hours of battery life with a 45 Ah (≈2250 Wh) 58 V battery. :content

  • Reference[oaicite:2]{index=2}

  • Standing dimensions approximately 1098 mm × 450 mm × 645 mm; total weight ≈60 kg (including battery). :content Reference[oaicite:3]{index=3}
  • Climb slopes >45° and overcome obstacles up to 40 cm. :content Reference[oaicite:4]{index=4}
    Technical Comparison

    P.A.R.K.E.R. – Model Specifications

    High-performance quadruped platform designed for heavy-duty applications and advanced research.

    Parameter X
    Mechanical Specifications
    Dimensions (Standing) 43.3 × 17.7 × 25.4 in
    Dimensions (Crouching) 34.6 × 18.1 × 13 in
    Weight (Including Battery) ≈132 lbs
    Material Aluminum alloy + High-strength engineering plastics
    Performance Parameters
    Payload Capacity ≈88 lbs (Max ≈132 lbs)
    Speed Range 0–6 m/s
    Maximum Climb Angle >45°
    Climb Drop Height ≈7.9 in
    Load (Standing/Walking) ≈265 lbs / ≈88 lbs
    Electrical & Power
    Voltage 58V
    Maximum Working Power ~2250W
    Battery Capacity 45 Ah (≈2250 Wh)
    Battery Life ~4–6 hours per charge
    Charging Options Fast Charge (58V, 12A)
    Docking Station Optional
    Mechanical & Electronics
    Peak Joint Torque ≈80 N·m
    Range of Motion Body: ±48°, Thigh: -220° to 95°, Shank: -165° to -50°
    Cooling System Advanced joint heat pipe cooler and intra-joint circuit
    Sensors & Connectivity
    Super-Wide-Angle 3D LiDAR Included
    HD Wide-Angle Camera Included
    Foot-End Force Sensor Included
    Wi-Fi Wi-Fi 6 (Dual-Band)
    Bluetooth 5.2 / 4.2 / 2.1 Supported
    Voice Functionality Supported
    RTT 2.0 Picture Transmission Included
    Graphical Programming Supported
    Additional Features
    ISS 2.0 Intelligent Detection and Avoidance Supported
    Auto-Scaling Strap Included
    Secondary Development Compatibility Supported
    Charging Pile Support Supported

    EMAIL OR CALL FOR PRICING.
