Description

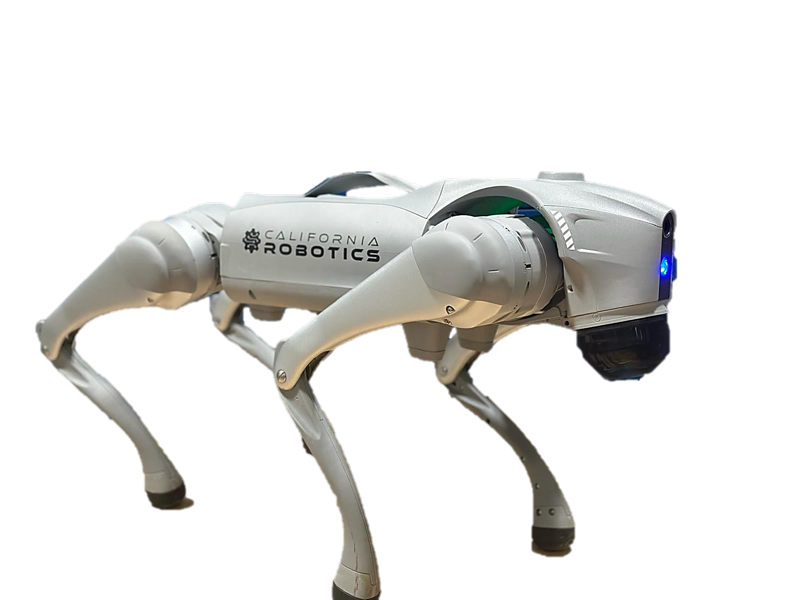

G.A.T.E.S. is a bionic quadruped robot designed for both consumer and educational purposes, as well as advanced professional applications. It features cutting-edge technologies such as ultra-wide 4D LiDAR, an HD wide-angle camera, wireless connectivity, and support for graphical programming.
Main Features
- Materials: Aluminum alloy + high-strength plastic.
- Power Supply: Nominal voltage 28V–33.6V, maximum working power approximately 3000W.
- Motion Performance: Speed up to about 5 m/s, maximum climbing angle up to 40°, and jump/drop height of ~15–16 cm in advanced configuration.
- Sensors & Connectivity: 4D LiDAR with 360°×90° coverage, HD camera, Wi-Fi 6 (dual-band), Bluetooth (5.2/4.2/2.1), voice support, and RTT 2.0 image transmission.
- Battery & Endurance: Standard (~8000 mAh) and long-life (~15000 mAh) battery options, offering up to 2–4 hours of operation depending on usage.
Smart Features: 3D mapping, graphical programming, intelligent detection and avoidance (ISS 2.0), and OTA updates. -
Technical Comparison
G.A.T.E.S. Horizon, Vanguard, and Nexus – Model Specifications
Compare mechanical, electrical, and performance parameters across all versions.
Parameter Horizon Vanguard Nexus Mechanical Specifications Dimensions (Standing) 27.6 × 12.2 × 15.7 in 27.6 × 12.2 × 15.7 in 27.6 × 12.2 × 15.7 in Dimensions (Crouching) 29.9 × 12.2 × 7.9 in 29.9 × 12.2 × 7.9 in 29.9 × 12.2 × 7.9 in Weight (Including Battery) ≈33 lbs ≈33 lbs ≈33 lbs Material Aluminum alloy + High-strength plastics Aluminum alloy + High-strength engineering plastic Aluminum alloy + High-strength engineering plastic Electrical & Power Parameters Voltage Range 28V–33.6V 28V–33.6V 28V–33.6V Maximum Working Power ~3000W ~3000W ~3000W Battery Capacity 8000mAh (Standard) 15000mAh (Long Endurance) 15000mAh (Long Endurance) Battery Life 1–2 hours (Typical) 2–4 hours (Typical) 2–4 hours (Typical) Charging Options 33.6V, 3.5A (Standard) Fast Charge (33.6V, 9A) Fast Charge (33.6V, 9A) Docking Station Not Available Optional Optional Performance Parameters Payload Capacity ≈15.4 lbs (Max 22 lbs) ≈15.4 lbs (Max 22 lbs) ≈17.6 lbs (Max 22 lbs) Speed Range 0–2.5 m/s 0–3.5 m/s 0–3.7 m/s (Max 5 m/s) Climb Drop Height ~5.9 in ~6.3 in ~6.3 in Maximum Climb Angle 30° 40° 40° Peak Joint Torque ~45 N·m ~45 N·m ~45 N·m Range of Motion Body: ±48°, Thigh: -200° to 90°, Shank: -156° to -48° Body: ±48°, Thigh: -200° to 90°, Shank: -156° to -48° Body: ±48°, Thigh: -200° to 90°, Shank: -156° to -48° Cooling System Joint heat pipe cooler and intra-joint circuit Joint heat pipe cooler and intra-joint circuit Joint heat pipe cooler and intra-joint circuit Connectivity & Sensors Super-Wide-Angle 3D LiDAR Included Included Included HD Wide-Angle Camera Included Included Included Foot-End Force Sensor Not Available Not Available Available Graphical Programming Support Included Included Included Wi-Fi Wi-Fi 6 (Dual-Band) Wi-Fi 6 (Dual-Band) Wi-Fi 6 (Dual-Band) Bluetooth 5.2/4.2/2.1 Supported 5.2/4.2/2.1 Supported 5.2/4.2/2.1 Supported Voice Function Available Available Available RTT 2.0 Picture Transmission Included Included Included Additional Features ISS 2.0 Intelligent Detection and Avoidance Supported Supported Supported Auto-Scaling Strap Included Included Included Secondary Development Compatibility Supported Supported Supported Charging Pile Support Supported Supported Supported
