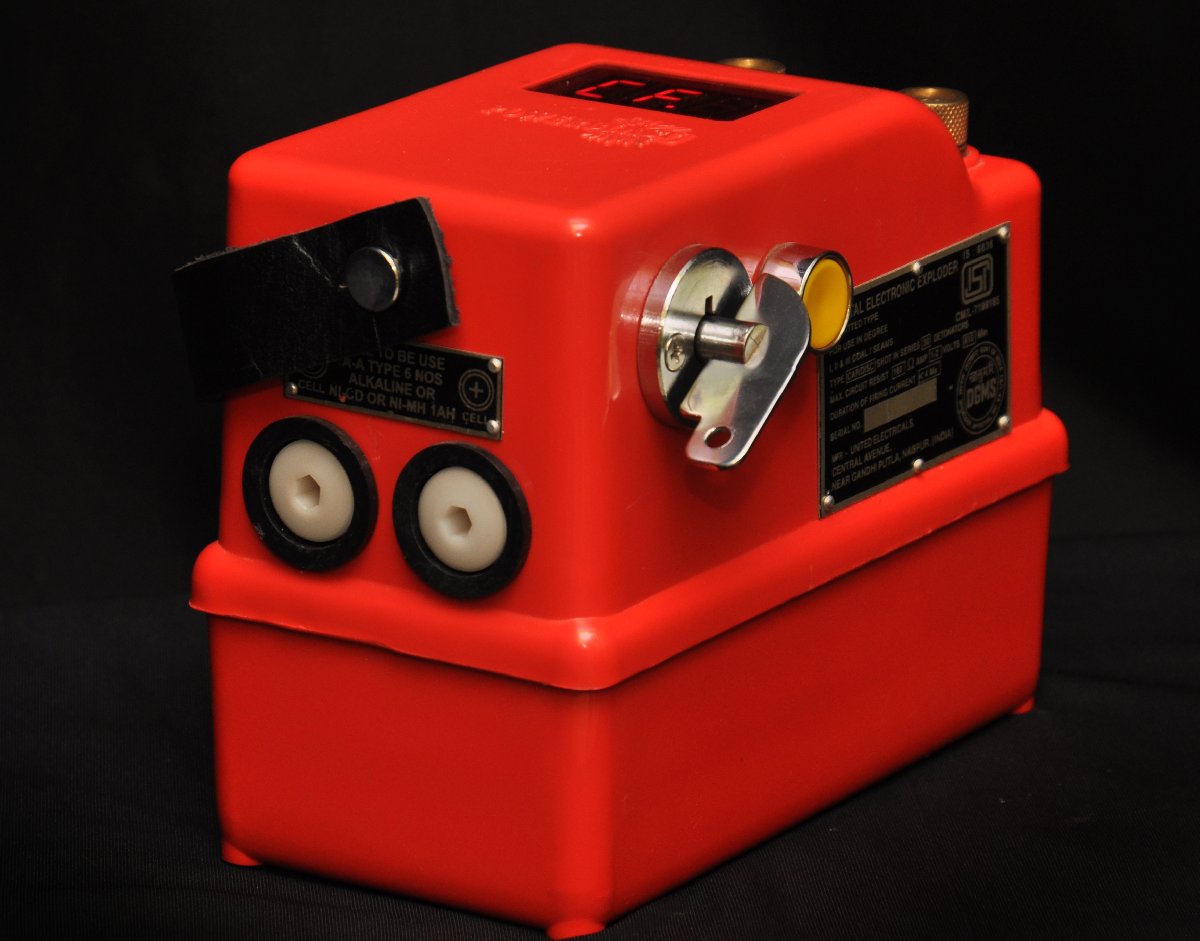

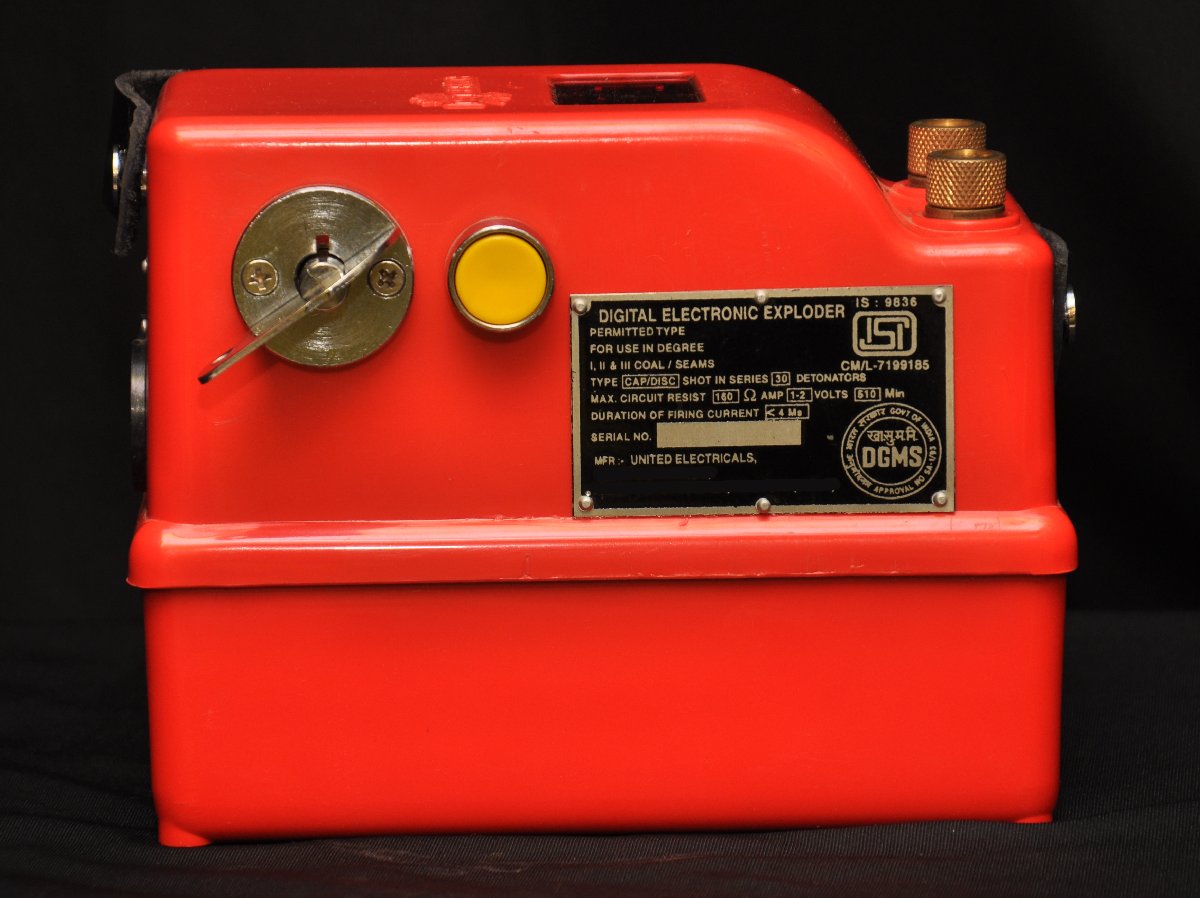

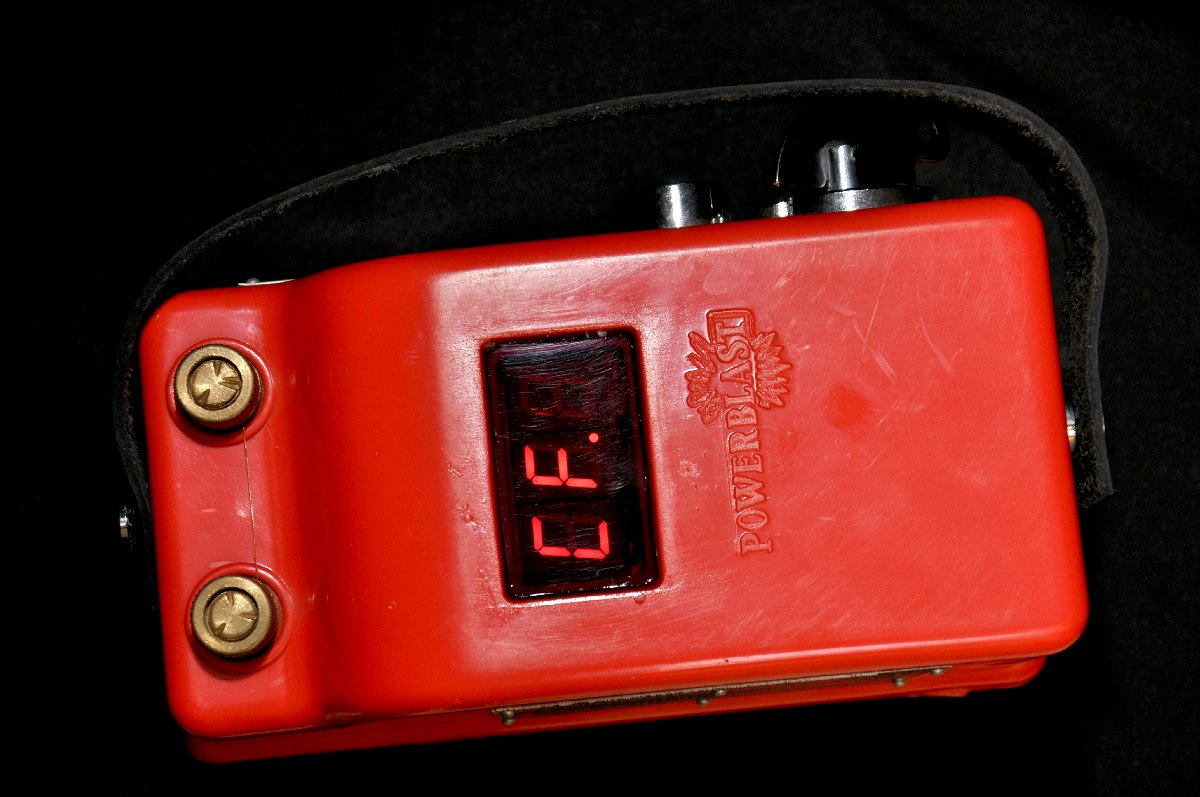

Powerblast 30 Shot Electronic Permitted Type Exploder

Features:

• Powerblast Exploder will not charge if the connected circuit has higher resistance then recommended, or the circuit is open
• Powerblast Exploder does not fire till the rated output is attained, when the firing switch is pressed
• Powerblast Exploder is provided with low battery indicator which gives warning that the battery is low and gets internally locked till the battery is replaced or charged
• Powerblast Exploder will discharged internally If the firing is to be cancelled by turning the operating key to the “OFF” position
• Powerblast Exploder Is very compact and has high impact plastic moulded body

Powerblast Exploder is very simple to operate:

• First check the instrument by inserting the key and turning it clockwise for the condition of the battery.”L” indicates low battery and dot (.) indicates that the exploder is ” ON “
• Connect the external circuit leads to the exploder output terminals
• By turning the inserted key clockwise the letter “C” will appear on the dial indicating that the circuit is In order
• Keep the key in clockwise position until the letter “F” start flashing
• Press firing switch to explode

Instruction for Use:

• Insert operating key and turn clockwise to 60, the Exploder will indicate “C” & then “F” starts flashing when full charge is attained. Press firing switch to explode
• Replace OR charge battery for 16 hours continuously when low battery indicator starts flashing

Checking:

• The capacity of the Exploder may be tested by special power blast Exploder tester.
• We are majorly looking queries from Africa, Australia and America.

Technical Specification:
